OIL CATCH MUFFLER
Oil Catch Muffler
The Oil Catch Muffler is designed to reduce and contain oil carried over from the use of a rotary vane pump.
Download Oil Catch Muffler Brochure

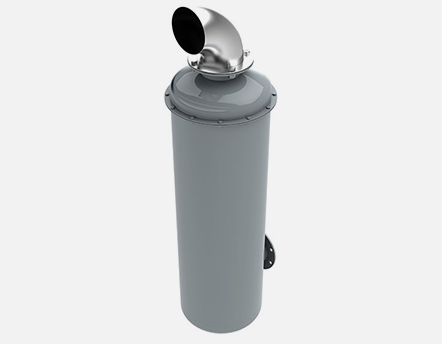

MUFFLERS/ SILENCERS
Mufflers Silencers
The Mufflers/ Silencers effectively reduce noise generated by the vacuum system. Available for air flows up to 4000cfm and in a variety of lightweight materials.
Download PL Silencers Brochure

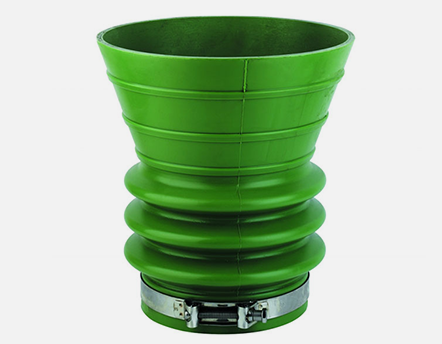

RUBBER BREAKAWAY COUPLING
Rubber Breakaway Coupling
The Rubber Breakaway Coupling is a vacuum pipe coupling designed for quick disconnection of the vacuum pipe, allowing tank tilting.
Download Rubber Breakaway Coupling Brochure

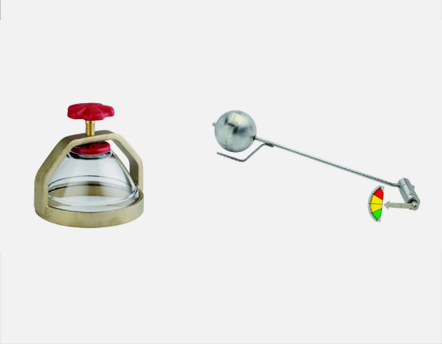

TANK LEVEL INDICATORS
Tank Level Indicators
The Tank Level Indicators are either sight glass assembly for inspection of liquid levels within the tank or have a mechanical float ball system with gauge to indicate liquid levels within the tank.
Download Tank Level Indicator Brochure (sight glass assembly)
Download Tank Level Indicator Brochure (mechanical float ball system)
KNIFEGATE VALVE
Knifegate Valve
The Knifegate Valve is air operated with a cast iron body and a stainless steel gate, typically used on the tank rear door or entry point.
Download Knifegate Valve Brochure

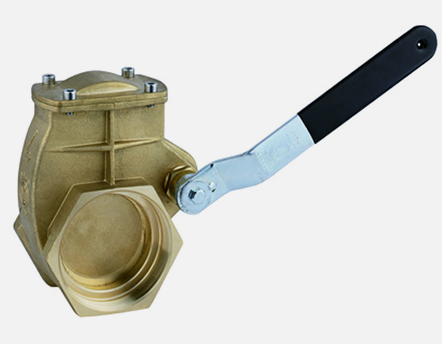

BRASS LEVER GATE VALVE
Brass Lever Gate Valve
The Brass Lever Gate Valve is lever operated and a quick acting knifegate valve, typically used on the tank rear door or entry point.
Download Brass Lever Gate Valve Brochure

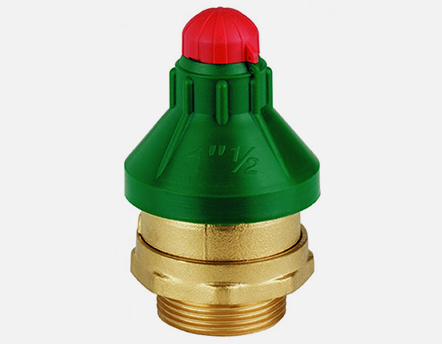

VACUUM RELIEF VALVE (DEPRESSION VALVE)
Vacuum Relief Valve
The Vacuum Relief Valve is an adjustable valve for allowing air to enter the vessel once the designated vacuum level is exceeded.

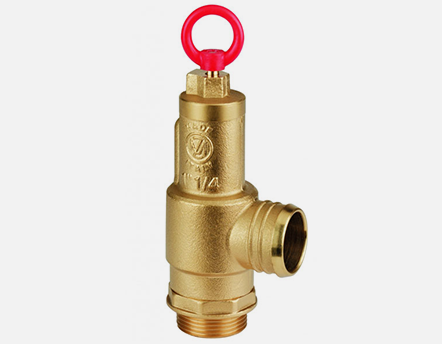

PRESSURE RELIEF VALVE
Primary Shut-Off
The Pressure Relief Valve is an adjustable valve for unloading air pressure within the vessel.
Download Pressure Relief Valve Brochure

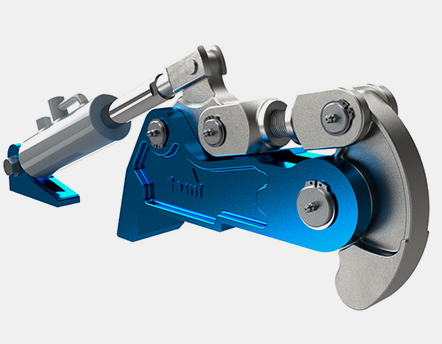

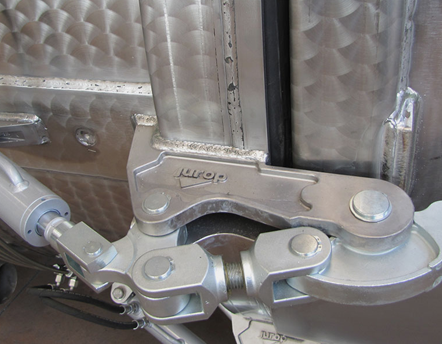

HYDRAULIC REAR DOOR KITS
Hydraulic Rear Door Kits

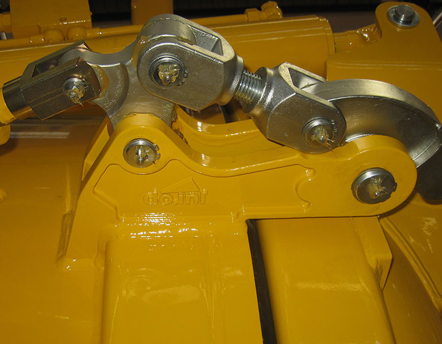

The Bottom Hinges are devices designed to be installed on the upper part of opening bottoms, on cylindrical tanks. Bottom Hinges are supplied with disassembled shaped plates, in order to adapt them both to the tank and to the opening tank bottom. They are equipped with a threaded eyebolt, which allows to easily adjust and adapt them to the specific installation conditions of the customer.
The Manual Hand Wheel Clamps are safety devices designed to allow closing open bottom tanks. Hand Wheel Clamps are equipped with welded supports (available in mild steel or stainless steel versions) on the tank and tank bottom respectively, and with partly threaded tie rod and clamping hand wheel.
Download Hydraulic Clamps Brochure
Download Manual Hand Wheel Clamps Brochure

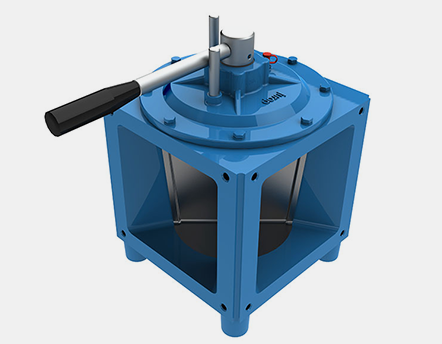

4-WAY VALVES
4-Way Valves
The 4-Way Valves are designed to be installed in correspondence of the vacuum/ pressure line of equipment typically used to clean sewer lines and cesspits. It allows reversing the vacuum pump air flow, thereby pressurizing the vacuum tank. This way, the operations to the discharge the material from the tank are optimised.
The 4-Way Valves can be manual, with manual actuation lever or pneumatic with pneumatic actuator. They are available with various diameters (2”, 2”½, 3”, 4”, 6” & 8”), each of which with cast iron deviator (typically suitable for vane decompressors) and bronze deviator (typically suitable for lobe decompressors).
Download 4-Way Valves Brochure
